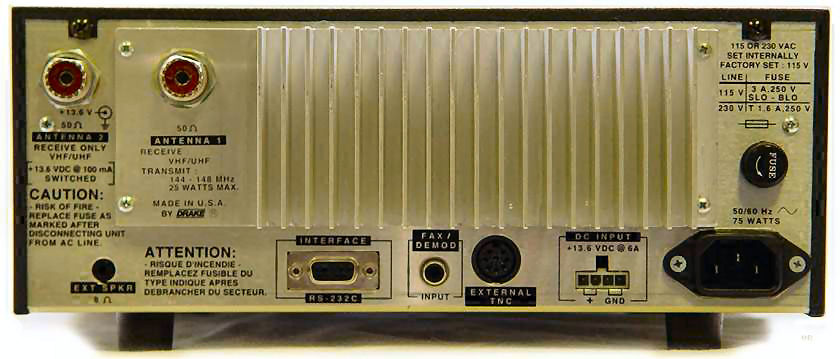

Drake TR270
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-148 MHz
RX: 136-174 / 420-470 MHz |
| Mode: |
FM |
| RF Power output: |
Lo: 1 W
Mid: 10 W
Hi: 25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
11-16 VDC or Mains |
| Current Drain: |
RX: Max 1.2 A
TX: Max 8 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
5.9 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
9K6 packet ready |
| Related Documents: |
User Manual (752 Kb) |
 |
